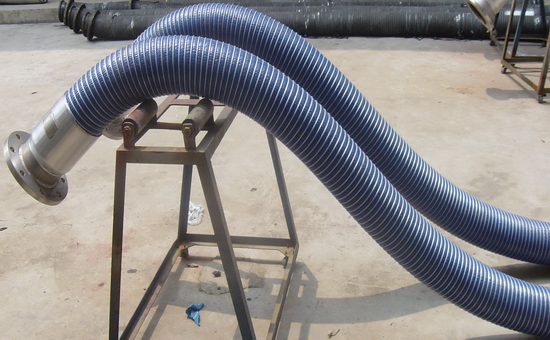

The Sondaflex hosesare composite hoses manufactured to the highest quality. The constructions aredesigned for suitability for the whole range of mineral and fuels. Hoses areavailable from low pressure road tanker applications through to heavy duty shipto shore hoses. All hoses are suitable for suction and delivery. All Sondaflexhoses are manufactured from multiple layers of thermoplastic fabrics and filmssupported by metallic wire inner and outer helices.

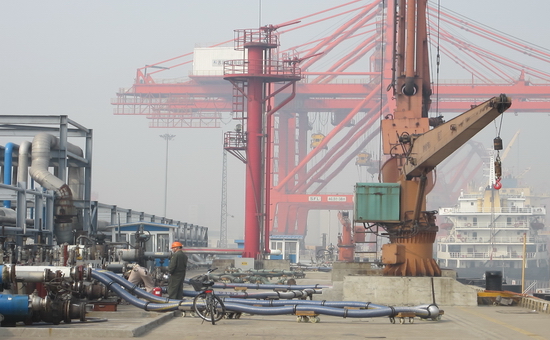

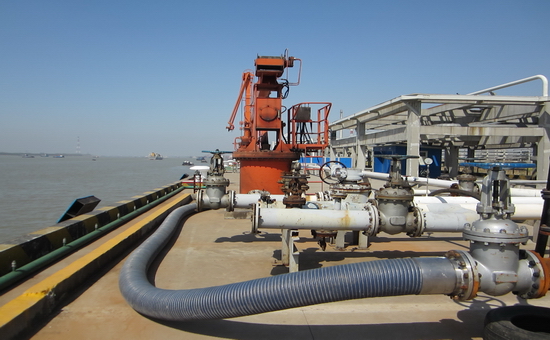

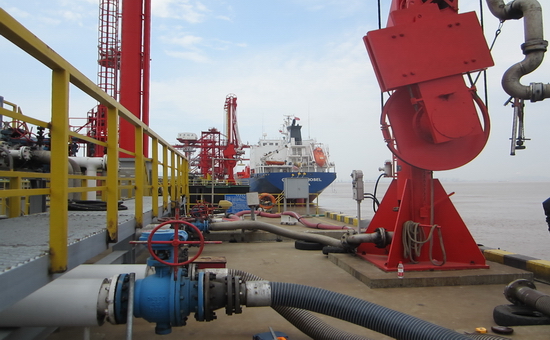

A tough, high strengthoil and petroleum transfer hose. Light Duty is designed for applications suchas rail car loading and unloading, road tanker bottom loading, lubricating oilplant hose exchanges. Standrad Duty and Heavy Duty is designed for ship toshore and on board marine transfer. Galvanised wires are high tensile steelwith a heavy hot dip zinc coating to reduce corrosion. The hose is lined andreinforced with polypropylene fabrics and sealed with polypropylene films. Thecover is a wear and weatherproof layer of PVC coated polyester.
SONDAFLEX TYGG, TYGS,
Construction
inner Wire spiral: galvanized steel
outer Wire spiral: galvanized steel /stainless steel 304/stainlesssteel 316
inner lining: polypropylene (e)
cover: PVC (pp onrequest)
Bore Diameter | Max Working Pressure | Bend Radius | Weight | Max Length | ||
INS | MM | BARS | PSI | MM | KGS/M | MT |
1 | 25 | 14bar | 200PSI | 200 | 1.35 | |
1.5 | 40 | 14bar | 200PSI | 200 | 1.80 | 25 |
2 | 50 | 14bar | 200PSI | 225 | 2.45 | 30 |
2.5 | 65 | 14bar | 200PSI | 225 | 3.20 | 25 |
3 | 80 | 14bar | 200PSI | 350 | 4.20 | 30 |
4 | 100 | 14bar | 200PSI | 400 | 4.90 | 30 |
6 | 150 | 14bar | 200PSI | 575 | 12.90 | 28 |
8 | 200 | 14bar | 200PSI | 800 | 20.10 | 28 |
10 | 250 | 14bar | 200PSI | 1000 | 26.50 | 16 |
12 | 300 | 14bar | 200PSI | 1200 | 31.80 | 16 |
